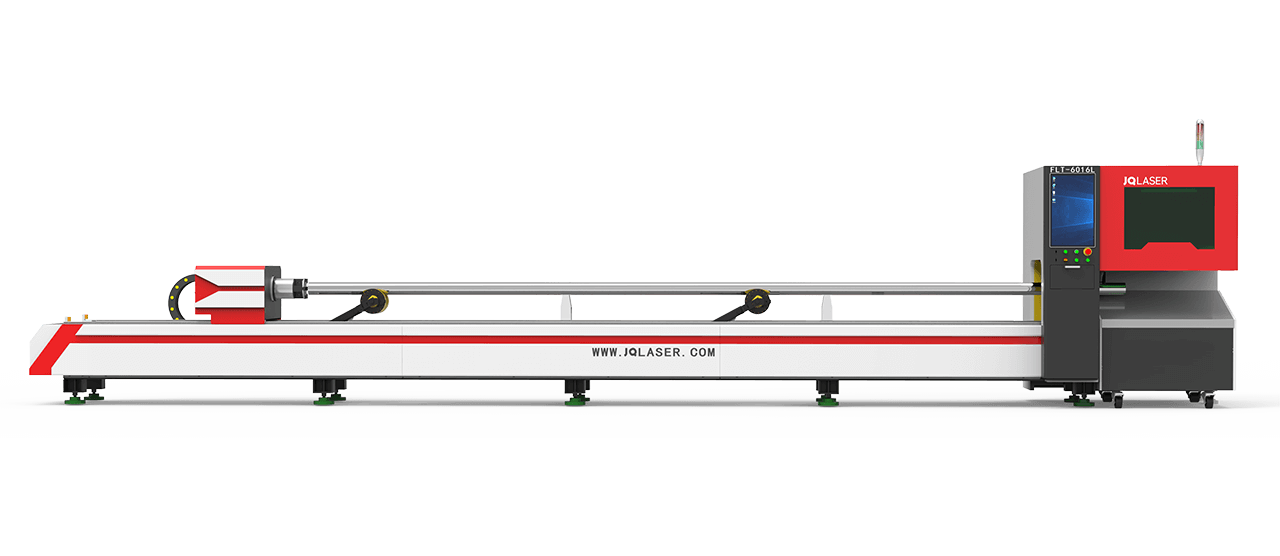

|1||Pipe processing size||Round pipe Φ20-φ160; square pipe side length ≤110; rectangular pipe profile diagonal ≤160mm; L≤6500.|| |
|2||Automatic loading workpiece size range (single pipe weight not more than 70kg)||Round pipe: Φ30mm-Φ130mm,single pipe weight≤70kg; square pipe: side length 25mm-80mm.|| |
|3||Flush length||5900≤workpiece≤6100|| |
|4||X-axis stroke||160|| |
|5||Y-axis stroke||6700|| |
|6||Z-axis stroke||120|| |
|7||X、Y axis positioning accuracy||±0.05/1000mm|| |
|8||X、Y axis repeatability||±0.03/1000mm|| |
|9||Acceleration speed||1G|| |
|10||Y-axis maximum running speed||60|| |
|11||Max. speed of chuck||100|| |
|12||Tail material length||≥90|| |
|13||Host shape (length, width and height)||About 8900×3300×1900|| |
|14||Laser power||2|| |
|15||Control system||Berchu|| |
|Whole machine power||20KW|| |
|Power supply requirements||380V/50Hz|| |
when the temperature is too low, the cutting effect is mainly manifested in the slow cutting speed, the occurrence of cutting interruption, tempering and increasing resistance after cutting.
The use of laser cutting equipment can improve the blanking efficiency of all single sheet metal, reduce the number of scribes and sheet metal blanking workers, and eliminate the pressure of rising labor costs.
Laser cutting machine adopts non-contact processing. In this processing mode with small heat affected area, the far-reaching significance of laser cutting machine in kitchen utensils processing industry is further reflected.
If you are interested or have any questions, please call : 18560186916
