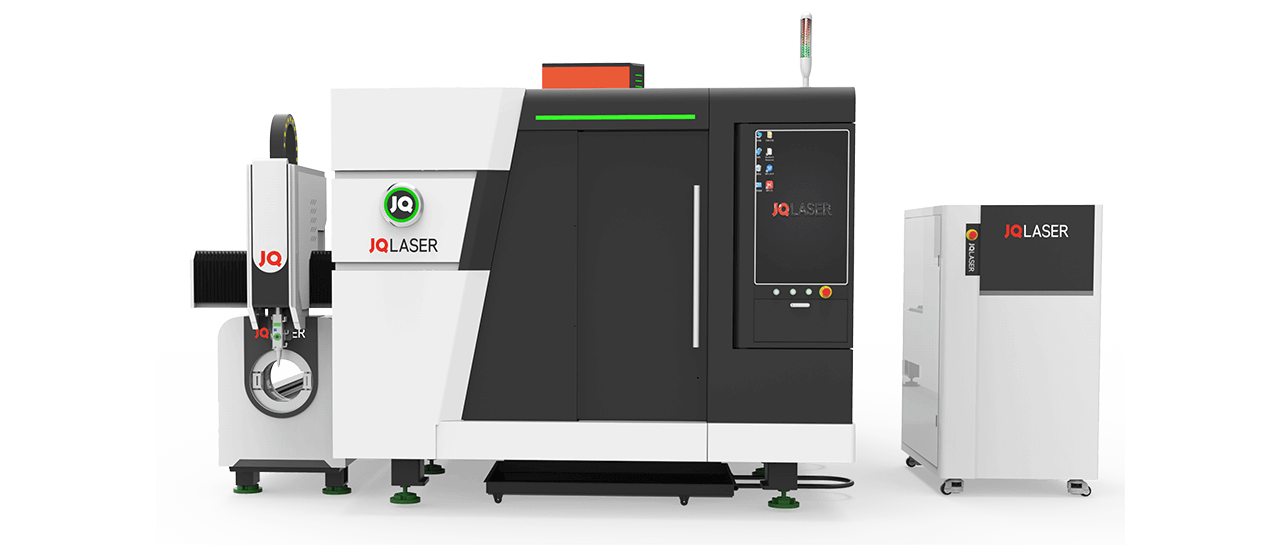

|1||Flat cutting width (length X width)||3000x1500|| |
|2||Pipe cutting specifications||Φ16-φ220, L=6000.|| |
|3||X-axis stroke||(Square tube and rectangular tube diagonal ≤ 200mm)|| |
|4||Y-axis stroke||2350|| |
|5||Z-axis stroke||3050|| |
|6||X and Y axis positioning accuracy||240|| |
|7||X and Y axis repeat positioning accuracy||±0.05/1000mm|| |
|8||Acceleration speed||±0.03/1000mm|| |
|9||Max. running speed||1G|| |
|10||Max. speed of rear chuck||80|| |
|11||Tailstock length||100|| |
|12||Max. loading capacity of platform||≥90（It will be slightly different according to the specific pipe)|| |
|13||Host shape (length, width and height)||900|| |
|14||Laser power||7600×3500×1700（including cut pipe part|| |
|15||Control system||***|| |
|16||Power of the whole machine||cypcut|| |
|17||Power supply requirements||***|| |
when the temperature is too low, the cutting effect is mainly manifested in the slow cutting speed, the occurrence of cutting interruption, tempering and increasing resistance after cutting.
The use of laser cutting equipment can improve the blanking efficiency of all single sheet metal, reduce the number of scribes and sheet metal blanking workers, and eliminate the pressure of rising labor costs.
Laser cutting machine adopts non-contact processing. In this processing mode with small heat affected area, the far-reaching significance of laser cutting machine in kitchen utensils processing industry is further reflected.
If you are interested or have any questions, please call : 18560186916
