Product Advantage:

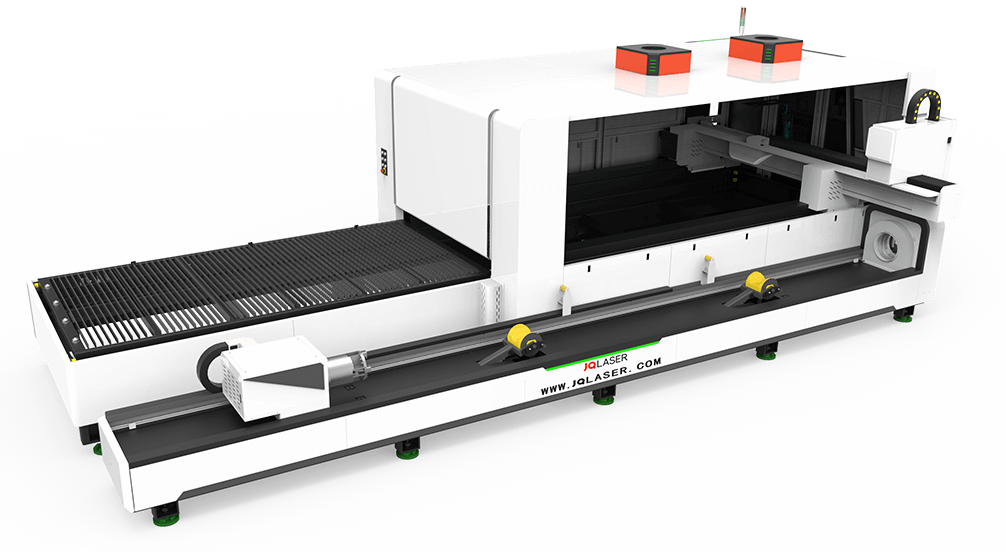

1.Meeting two kinds of processing needs of tubes and plates, 1530c can saves more 50% of work space to increase the producing efficiency.
2.Laser electro-optic conversion rate is as high as 30%, realizing a quit low energy consumption and production cost
3.Accepting customization of plate cutting area and size of work platform
4.Equipped with pneumatic full stroke chuck which can catch tubes with diameter of 15-220mm , the 1530c can achieve a great cutting result collaborated with high precision servo deceleration system.
Product Advantage:
1.Meeting two kinds of processing needs of tubes and plates, 1530c can saves more 50% of work space to increase the producing efficiency.
2.Laser electro-optic conversion rate is as high as 30%, realizing a quit low energy consumption and production cost
3.Accepting customization of plate cutting area and size of work platform
4.Equipped with pneumatic full stroke chuck which can catch tubes with diameter of 15-220mm , the 1530c can achieve a great cutting result collaborated with high precision servo deceleration system.
Project name | Parameter | Unit |
Working area | 3000x1500 | mm |
Tube Diameter | Φ16-φ220,L=6000;(Square and rectangle tube diagonal≤200mm) | mm |
X-axis travel | 2500 | mm |
Y-axis travel | 3050 | mm |
Z-axis travel | 300 | mm |
X,Y positioning accuracy | ±0.05/1000mm | mm |
X,Y repeat positioning accuracy | ±0.03/1000mm | mm |
Acceleration | 1.2 G | m/s² |
Max running speed | 100 | m/min |
Rear chuck max rotating speed | 100 | r/min |
Tailing length | ≥90(will have little difference according to different tubes) | mm |
Table max load | 1000 | kg |
Machine size (length x width x height ) | 8000×4700×2100(include rotary ) | mm |
Laser power | 3000 | w |
Control system | Fscut | |
Machine voltage | 380v/50Hz | V/Hz |
Project name | Parameter | Unit |
Working area | 3000x1500 | mm |
Tube Diameter | Φ16-φ220,L=6000;(Square and rectangle tube diagonal≤200mm) | mm |
X-axis travel | 2500 | mm |
Y-axis travel | 3050 | mm |
Z-axis travel | 300 | mm |
X,Y positioning accuracy | ±0.05/1000mm | mm |
X,Y repeat positioning accuracy | ±0.03/1000mm | mm |
Acceleration | 1.2 G | m/s² |
Max running speed | 100 | m/min |
Rear chuck max rotating speed | 100 | r/min |
Tailing length | ≥90(will have little difference according to different tubes) | mm |
Table max load | 1000 | kg |
Machine size (length x width x height ) | 8000×4700×2100(include rotary ) | mm |
Laser power | 3000 | w |
Control system | Fscut | |
Machine voltage | 380v/50Hz | V/Hz |
*15 years of factory production experience
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
24H Online Service
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival.
Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.
Multi-batch customer return visits, timely discovery of problems to solve and improve.
*15 years of factory production experience
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
24H Online Service
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival.
Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.
Multi-batch customer return visits, timely discovery of problems to solve and improve.
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
