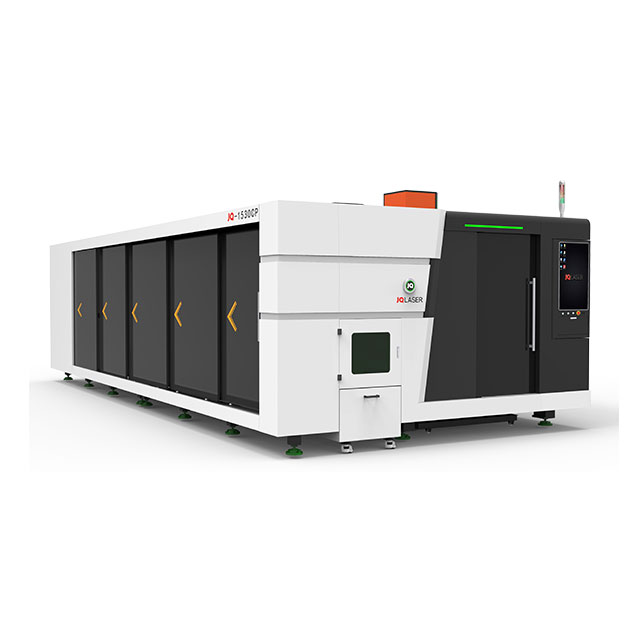

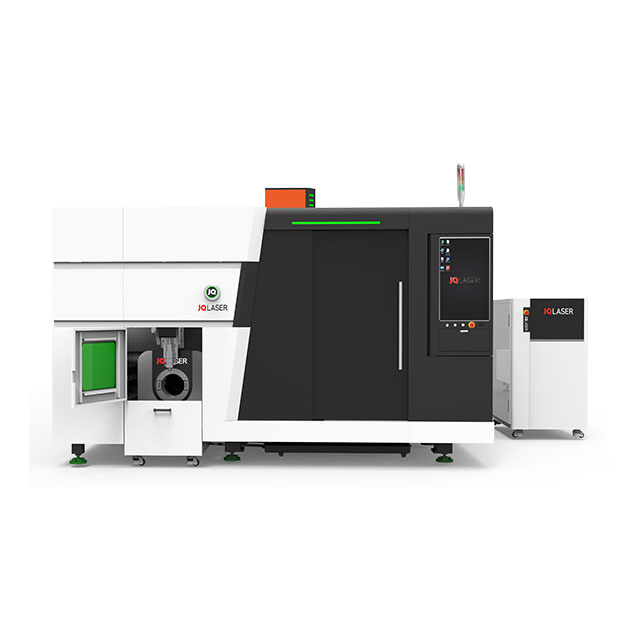

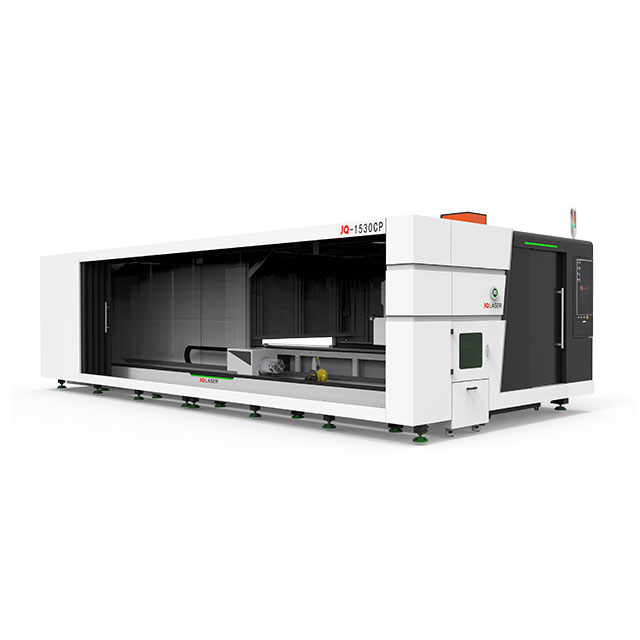

JQ1530CP(H)-1000/1500/2000/3000W/4000W laser cutting machine combines plate and tube processing function into one set, supporting cutting job of plate metal with working area 3000mm×1500mm and φ16-φ220mm of pipe cutting. This machine is designed for dual-purpose cutting job with perfect cutting effect. It is widely used in stainless steel processing industry which serves for plate metal cutting and sports equipment manufacturing .
Availability: | |
---|---|
Product Advantage:
1.Through staggered layer exchange platform and switching motor controlled by frequency converter, The work bed can be exchanged within 15s.
2.smaller space be taken and high production efficiency. Two processing abilities for tube and plate can save more than 50% of space compare with two different machines,
3.Its CNC system can realize more processing technologies like cutting, chamfering, punching and so on, to get lower production cost.
Product Advantage:
1.Through staggered layer exchange platform and switching motor controlled by frequency converter, The work bed can be exchanged within 15s.
2.smaller space be taken and high production efficiency. Two processing abilities for tube and plate can save more than 50% of space compare with two different machines,
3.Its CNC system can realize more processing technologies like cutting, chamfering, punching and so on, to get lower production cost.
Project name | Parameter | Unit |
Plane cutting format (length X width) | 3000x1500 | mm |
Tube Cutting Specifications | Φ20-Φ220, L=6000 | mm |
X-axis travel | 2600 | mm |
Y-axis travel | 3050 | mm |
Z-axis travel | 300 | mm |
X, Y axis positioning accuracy | ±0.05/1000mm | mm |
X, Y axis repeated positioning | ±0.03/1000mm | mm |
acceleration | 1.5G | m/s² |
maximum operating speed | 120 | m/min |
Platform maximum load | 1100 | kg |
Mainframe shape (length, width and height) | 8100×3750×2650 | mm |
Laser power | 3000-6000 | w |
Power Requirements | 380v/50Hz | V/Hz |
Project name | Parameter | Unit |
Plane cutting format (length X width) | 3000x1500 | mm |
Tube Cutting Specifications | Φ20-Φ220, L=6000 | mm |
X-axis travel | 2600 | mm |
Y-axis travel | 3050 | mm |
Z-axis travel | 300 | mm |
X, Y axis positioning accuracy | ±0.05/1000mm | mm |
X, Y axis repeated positioning | ±0.03/1000mm | mm |
acceleration | 1.5G | m/s² |
maximum operating speed | 120 | m/min |
Platform maximum load | 1100 | kg |
Mainframe shape (length, width and height) | 8100×3750×2650 | mm |
Laser power | 3000-6000 | w |
Power Requirements | 380v/50Hz | V/Hz |
*15 years of factory production experience
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
24H Online Service
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival.
Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.
Multi-batch customer return visits, timely discovery of problems to solve and improve.
*15 years of factory production experience
* 24h after-sales quick solution
* 30,000+ cumulative customers nationwide
24H Online Service
Extensive coverage of 30+ domestic offices and institutions to create a 2-hour service arrival.
Combination of online cloud classroom and offline door-to-door service to meet customer needs in multiple irections and at multiple levels.
Multi-batch customer return visits, timely discovery of problems to solve and improve.
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?
Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?
Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts
will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the
world, We need your machines running in order to keep your business running
